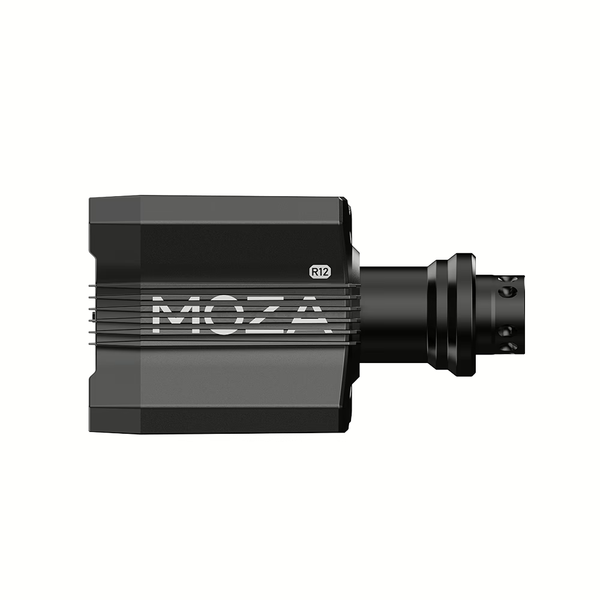

MOZA R12 V2 Direct Drive Wheel Base
12Nm professional direct drive base with 21-bit encoder, carbon fiber rotor, and NexGen 4.0 force feedback
The MOZA R12 V2 is a professional-grade 12Nm direct drive wheel base engineered for high-performance sim racing. It delivers ultra-precise, responsive, and consistent force feedback through a next-generation drive system designed for competitive and immersive driving experiences.
Built around a 21-bit high-resolution encoder and a high-efficiency servo motor, the R12 V2 ensures extremely fine steering detail with near-zero latency response. Combined with a carbon fiber wrapped rotor for improved thermal stability, it maintains consistent performance even under sustained racing loads.
With aerospace-grade aluminum construction and intelligent temperature management, the R12 V2 is designed for durability, stability, and long-term reliability. Full integration with MOZA Pit House software allows real-time tuning and deep customization for any driving style.
Key Features
12Nm direct drive torque for professional sim racing performance
21-bit encoder with 2,097,152 steps per revolution
Ultra-high 0.00017° steering resolution for extreme precision
Carbon fiber wrapped rotor for superior thermal efficiency
NexGen 4.0 force feedback system with iRacing 360Hz support
Aerospace-grade aluminum alloy housing for maximum durability
Intelligent temperature control for stable long-session performance
Hand-off protection for safe centering and drift control
Fully customizable via MOZA Pit House app
Specifications
Product Type: Direct drive wheel base
Platform: PC
FFB System: Direct Drive
Peak Torque: 12 N·m
Peak Power: 216W
Encoder Resolution: 21-bit (2,097,152 PPR)
Max Rotation: 90°–2700°
Housing Material: Aviation-grade aluminum alloy
Input Voltage: 110V–220V AC → 36V DC
USB Refresh Rate: 1000Hz
Weight: 7.5 kg
Dimensions: 225.87 × 156.68 × 123.99 mm
Mounting: 4-hole bottom mount
Desk Clamp: Optional
E-stop: Optional
Compatibility
Compatible with MOZA racing ecosystem and quick-release wheels
Works with PC-based sim racing titles including iRacing and major racing sims
Supports MOZA Pit House real-time configuration software
Compatible with pedals, shifters, handbrakes, dashboards, and accessories
Engineered for professional sim racing with high durability, thermal stability, and ultra-precise force feedback control
